Traffic Signs

Click the Images Below to Scroll Through Traffic Signs

MUTCD Regulatory Sign Listing

MUTCD CODE

SIGN TITLE

R1-1

Stop

R1-1A

Right Lane Keep Moving

R1-1-1

Except Right Turn

R1-1-2

Ramp

R1-1-3

Ramp Stop

R1-1-4

Ramp Yield

R1-2

Yield

R1-2A

To Oncoming Traffic (For R 1-2)

R1-3

Multiway Stop (For R 1-1)

R1-4

Multiway Stop (For R 1-1) (Allway)

R1-4-1

Stop Sign Removed From Side Street

R1-5L

Yield Here To Pedestrian With Left Arrow

R1-5R

Yield Here To Pedestrian With Right Arrow

R1-6

In - Street Pedestrian Crossing

R2-1

Speed Limit

R2-2

Truck & Bus Plaque

R2-2-1

Trucks Over (    ) Lbs. Speed

R2-2-2

Work Zone Speed Limit

R2-5

Reduced Speed (    ) Ahead

R2-9

Next (    )

R2-10

End ( For R2-1 R2-2-1 R3-7L & R3-9B)

R2-15

Maintain Speed Thru Tunnels

R3-1

No Right Turn

R3-1A

Except Buses Plaque

R3-1B

Trucks Over (    ) Feet Long Plaque

R3-2

No Left Turn

R3-3

No Turns

R3-3-3

No Turns From Shoulder

R3-4

No U-Turn

R3-5L

Left Turn

R3-5R

Right Turn

R3-5S

Straight-Through

R3-5-1

U-Turn Ok

R3-6LR

Optional Left Or Right Turn

R3-6LS

Optional Left Turn

R3-6LSR

Optional LeftStraight & Right Turn

R3-6SR

Optional Right Turn

R3-7C

Center Lane Must Turn Left

R3-7L

Left Lane Must Turn Left

R3-47LA

Left Lane Must Turn Left (Narrow)

R3-7R

Right Lane Must Turn Right

R3-7RA

Right Lane Must Turn Right (Narrow)

R3-7-1L

All Traffic Must Turn Left

R3-7-1R

All Traffic Must Turn Right

R3-7-2

Lane Must Turn Supplementary Plaque

R3-8A

Lane Use Control (Two Lanes) (Two Sheets)

R3-8B

Lane Use Control (Three Lanes)

R3-9A

Two-Way Left Turn Only

R3-9B

Center Lane - Left Turn Only

R3-9-3

Begin (For R3-9A & R3-9B)

R3-10

Hov Restricted Lane

R3-11A

Hov Preferential Lane

R3-12

Hov Preferential Lane Ahead

R3-12A

Hov Preferential Lane Ends

R3-14

Preferential Lane

R3-15

Hov Preferential Lane Ahead Overhead

R3-15A

Hov Preferential Lane Ends Overhead

R3-17

Bike Lane

R4-1

Do Not Pass

R4-1A

No Passing Zone Ahead

R4-2

Pass With Care

R4-3

Slower Traffic Keep Right

R4-4

Right Turn Lane/Bikes

R4-5

Trucks Use Right Lane

R4-6

Truck Lane (    ) Feet

R4-7

Keep Right

R4-7B

Keep Right With 30˚ Arrow

R4-8

Keep Left

R4-8B

Keep Left With 30˚ Arrow

R4-9

Stay In Lane

R4-10

Runaway Vehicles Only

R4-10-1

From Single Lane

R4-11

Left Lane No Buses

R4-11-1

Left Lane No Trucks

R4-11-2

No Trucks Buses Trailers Left Lane

R4-12

Trucks Buses Right Lane Only

R4-12-1

Truck Minimum Speed Limit

R4-14

Enter Here

R4-15

All Turns From Right Lane

R4-16

All Turns (Right Diagonal Arrow)

R4-18

Keep Off Shoulder

R4-19

Keep Off Median

R4-20

Thru Traffic Stay Left

R5-1

Do Not Enter

R5-1A

Wrong Way

R5-2

No Truck

R5-2-3

Except Local Deliveries ( For R5-2R12-1 R12-4)

R5-2-4

Truck Weight (Length) Restriction Panel (For R5-2)

R5-2-5

Except Local Traffic

R5-3

No Motor Vehicles

R5-3-1

Motor Vehicles Only

R5-3-1A

Motor Vehicles And Bicycles Only

R5-3-1B

Bicycles Must Use Shoulder

R5-3-1C

All Bicycles Must Exit

R5-3-1D

Bicycle Restrictions

R5-3-2

Pedestrians Only

R5-3-4

No Trucks Or Buses

R5-3-5

No Rv'S Beyond This Point

R5-3-6

Emergency And Authorized Vehicles Only

R5-6

No Bicycles

R5-7

Semitrailer Minimum Underclearance

R5-10

Vehicles Over (    ) (    ) Follow

R5-10C

Pedestrians Prohibited

R5-10-1

Vehicles Over (    ) Tons No Turns

R5-11

Snow Emergency Route

R5-20

Flam Liq & Exp Loads Prohibited In Tunnel

R5-20-1

Flam Liq & Exp Load Must Use Next Exit

R5-21

Hazardous Loads With Placards Prohibited

R5-21-1

Hazardous Materials Must Follow Detour

R6-1L

Horizontal Left One-Way

R6-1R

Horizontal Right One-Way

R6-2L

Verticle Left One-Way

R6-2R

Verticle Right One-Way

R6-3

Divided Highway Crossing

R6-3A

Divided Highway Sideroad Crossing

R6-10

Two-Way Traffic Ahead

R6-11

End One-Way

R6-12

Begin One-Way

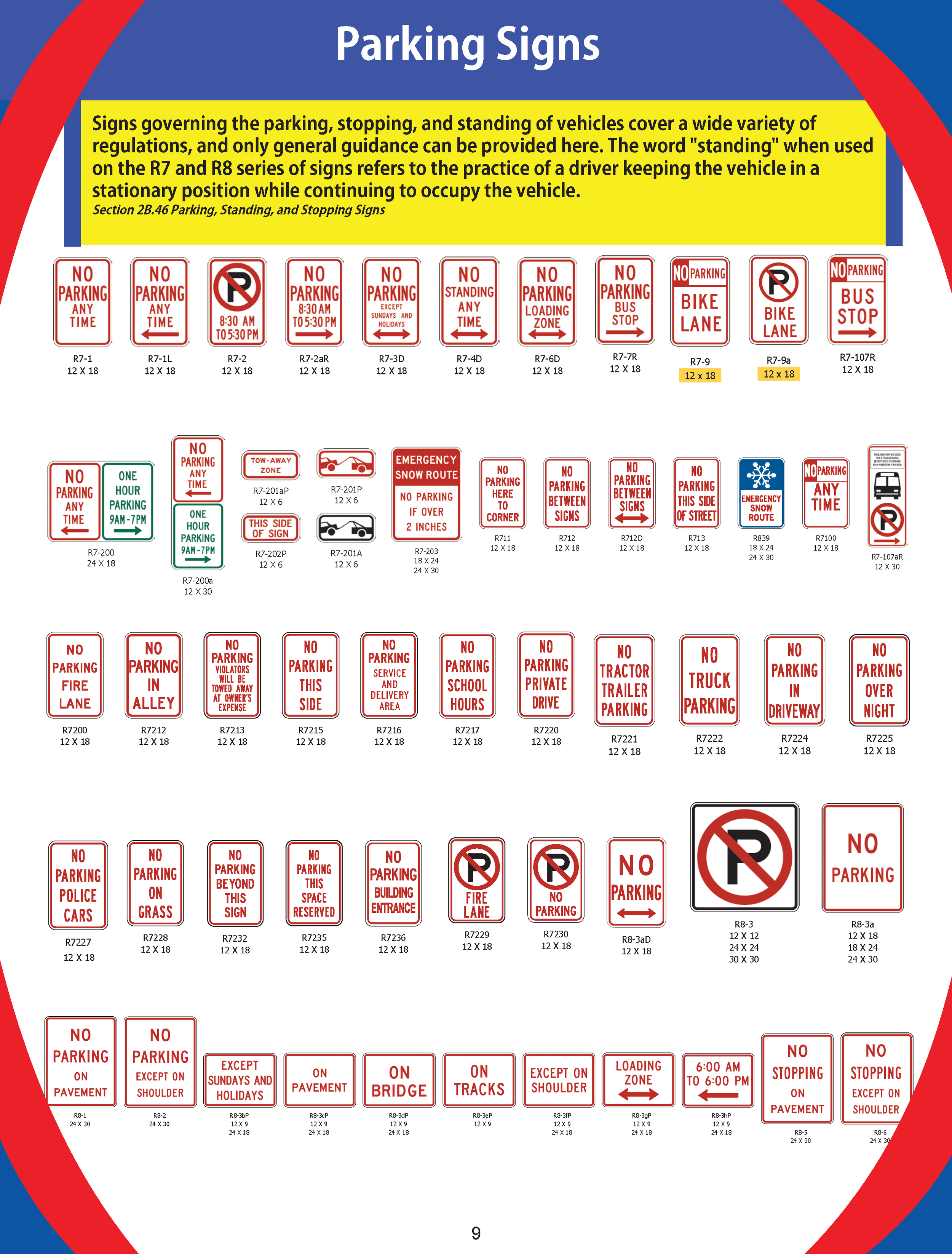

R7-2

No Parking Restricted Hours Plaque (For R8-3A)

R7-2A

No Parking Restricted Hours

R7-2B

No Parking Restricted Days

R7-4

No Standing Any Time

R7-4A

No Stopping Or Standing

R7-5

Limited Time Parking

R7-6

No Parking Loading Zone Plaque

R7-6A

No Parking Loading Zone

R7-7

No Parking Arrow Plaque (For R8-3A)

R7-7A

No Parking Symbol/Arrow

R7-8

Reserved Parking

R7-8B

Van Accessible

R7-8F

Reserved Parking Penalties

R7-8-1

Reserved Parking-State Police Only

R7-8-2

Reserved Parking Educational Plaque (For R7-8)

R7-8-3

Permit Parking For Governor'S Residence

R7-9

One Hour Parking Except Turnpike Employees

R7-10

Temporary No Parking

R7-22

Snow Emergency Route No Parking

R7-22-1

No Parking Until Snow Is Removed

R7-100

No Idling

R7-107A

No Parking Bus Stop

R7-201

Tow-Away Zone

R8-1

No Parking On Pavement

R8-3A

No Parking Symbol

R8-4

Emergency Parking Only

R8-5

No Stopping On Pavement

R8-7

Emergency Stopping Only

R8-8

Do Not Stop On Tracks

R8-9

Tracks Out Of Service

R8-20

No Stopping On Bridge

R9-1

Walk On Left Facing Traffic

R9-2

Cross Only At Crosswalks

R9-3A

No Pedestrian Crossing

R9-3BL

Use Crosswalk PlaqueLeft (For R9-3A)

R9-3BR

Use Crosswalk Plaque Right (For R9-3A)

R9-4B

Do Not Pick Up Hitch-Hikers

R9-9

Sidewalk Closed

R9-10

Sidewalk Closed Use Other Side

R9-11A

Sidewalk Closed Cross Here

R10-1

Cross On Green Light Only

R10-2

Cross On Walk Signal Only

R10-2A

Cross On Walk Symbol Only

R10-3

Push Button For Green Light

R10-3B

Educational Push Button For Walking Person Signal

R10-3C

Educational Push Button For Walk Signal

R10-3E

Educ. Push Button For Walk Signal W/ Countdown Time

R10-4

Push Button For Walk Signal

R10-4B

Push Button For Walking Person Signal

R10-5

Left On Green Arrow Only

R10-6AL

Stop Here On Red (Left)

R10-6AR

Stop Here On Red (Right)

R10-6-1

Left Lane Plaque

R10-7

Do Not Block Intersection

R10-8

Push Button To Activate Warning Lights

R10-10L

Left Turn Signal

R10-10R

Right Turn Signal

R10-11

No Turn On Red Symbol

R10-11B

No Turn On Red Square-Shaped

R10-11

No Turn On Red With One-Line Restriction

R10-12

Left Turn Yield On Green

R10-13

Emergency Signal

R10-18

Traffic Laws Photo Enforced

R10-19

Photo Enforced

R10-20

Opposing Traffic Has Extended Green

R10-20A

Restricted Hours Plaque

R11-2

Road Closed

R11-2-1

Bridge Closed

R11-3A

Road Closed - Local Traffic Only

R11-3B

Bridge Out - Local Traffic Only

R11-4

Road Closed To Thru Traffic

R11-6

Closed For The Season

R11-7

Trucks Keep Off Shoulder

R11-10

Street Closed (    ) To (    )

R11-11

Snowmobile Road - Closed To All Other Vehicles

R11-11-1

Atv Road - Closed To All Other Traffic

R11-11-2

Snowmobile - Atv Road/Closed To All Other Vehicles

R12-1

Weight Limit (    ) Tons

R12-1A

Bridge Limited To One Truck

R12-1-1

(    ) Miles Ahead (Black-On-White)

R12-1-2

Bridge (For R12-1 & R12-1-1)

R12-1-3

Weight Limit For Safety Plaque (For R5-2R12-1 R12-5)

R12-1-4

Seasonal Weight Limite (For R12-1)

R12-5A

Except Combinations (    ) Tons (For R12-1)

R12-6

102-Inch Wide Trailer Advance Prohibited

R12-6A

102-Inch Wide Trailer Prohibited

R13-1-1

All Trucks Must Enter Weigh Station

R13-2

All Trucks Must Enter Rest Area

R14-1

Truck Route

R14-2

Hazardous Material Route

R14-3

Hazardous Material Prohibited

R14-6

Waste Trucks Prohibited

R14-9

Brake Retarders Prohibited

R14-9A

End Brake Retarder Prohibition

R14-10

Trucks Reduce Gear

R14-11

Trucks Over (    ) Lbs Gross Weight Reduce Gear

R14-12

Reduce Gear Zone

R14-12-1

Stay In Reduced Gear

R14-13

End Reduced Gear Zone

R14-14

Trucks Over (    ) Lbs Stop (    ) Feet

R14-15

Trucks Over (    ) Lbs With Arrow

R14-16-1

Vehicles Over (    ) Ft Wide Prohibited

R14-16(1)

Beyond Exited (For R14-16'S)

R14-16(2)

Beyond Next Exit (For R14-16'S)

R14-16(3

Beyond Next Intersection (For R14-16'S)

R14-17

Trucks Over 10 000 Gvwr Right Lane

R14-17-1

Vehicles Over (    ) Ft In Height Prohibited

R14-18

Trucks Over 10 000 Gvwr Enter

R14-19

Buses Right Lane

R14-20

Buses Enter Here

R15-1

Railroad Crossbuck

R15-2

Tracks (For R15-1)

R15-3

Exempt Railroad Crossing

R15-4

High Speed Trains

R16-1

School Bus Law

R16-4

No Cruising

R16-5

Wet Paint

R16-6

No Fishing Diving Or Loitering

R16-8

Use Flashers Below (    ) Mph

R20-4

Three Or More Axle Trucks

R21-1

Ramp Meter On When Flashing

R21-2

Form Two Lanes When Metered

R21-3

One Vehicle Per Green

R21-4

One Vehicle Per Green Each Lane

R22-1

Work Zone-Turn On Headlights

W1-1L

Left Turn

W1-1R

Right Turn

W1-1LR

Left Turn With Side Road Right (Symbol)

W1-1LS

Left Turn With Side Road Straight Ahead (Symbol)

W1-1RL

Right Turn With Side Road Left (Symbol)

W1-1RS

Right Turn With Side Road Straight Ahead (Symbol)

W1-2L

Left Curve

W1-2R

Right Curve

W1-2LRA

Left Curve -- Diverging Minor Right Side Road

W1-2LRB

Left Curve -- Converging Minor Right Side Road

W1-2RLA

Right Curve -- Diverging Minor Left Side Road

W1-2RLB

Right Curve -- Converging Minor Left Side Road

W1-3L

Left Reverse Turn

W1-3R

Right Reverse Turn

W1-4L

Left Reverse Curve

W1-4R

Right Reverse Curve

W1-4BL

Two-Lane Left Reverse Curve

W1-4BR

Two-Lane Right Reverse Curve

W1-5L

Left Winding Road

W1-5R

Right Winding Road

W1-5-1

Winding Road Next (    ) Miles

W1-6

Large Single Arrow

W1-7

Large Double Arrow

W1-8

Chevron Alignment

W1-10L

Left Curve Right Side Road

W1-10R

Right Curve Left Side Road

W1-11L

Left Horseshoe Curve

W1-11R

Right Horseshoe Curve

W1-13L

Truck Rollover Left Ccurve

W1-13R

Truck Rollover Right Curve

W2-1

Cross Road

W2-1-1L

Offset Side Road Left

W2-1-1R

Offset Side Road Right

W2-2

Side Road

W2-2D

Double Side Road

W2-3L

45˚ Side Road Left

W2-3R

45˚ Side Road Right

W2-3-1L

Curve - Side Road Left

W2-3-1R

Curve - Side Road Right

W2-4

T Symbol

W2-5

Y Symbol

W2-5-1L

Y Symbol Secondary Left

W2-5-1R

Y Symbol Secondary Right

W2-6

Circular Intersection

W3-1

Stop Ahead

W3-2

Yield Ahead

W3-3

Signal Ahead

W3-3-3

Signal Out Of Service

W3-4

Be Prepared To Stop

W3-4A

Police Control Ahead

W3-5

Speed Reduction Sign

W4-1L

Merge Left

W4-1R

Merge Right

W4-2L

Pavement Width Transition - Left Lane Ends

W4-2R

Pavement Width Transition - Right Lane Ends

W4-3L

Left Added Lane

W4-3R

Right Added Lane

W4-4A

Traffic From Left Does Not Stop

W4-4B

Oncoming Traffic Does Not Stop

W4-4P

Cross Traffic Does Not Stop

W4-13

Weave Area

W5-1

Road Narrows

W5-1-1

Narrow Road Next (    ) Miles

W5-2

Narrow Bridge

W5-2A

Narrow Underpass

W5-3

One Lane Bridge

W5-3A

One Lane Underpass

W5-3B

Two One Lane Bridges

W5-4-1

Lanes Narrow

W5-5

Lanes Shift

W6-1

Divided Highway - Divided Highway Ends

W6-3

Two-Way Traffic

W6-5

Expressway Ends

W6-7

Freeway Ends

W7-1

Hill

W7-3

Grade (For W7-1)

W7-3A

Next (    ) Mile (For W7-1)

W7-3B

(    ) Grade / (    ) Miles (For W7-1)

W7-4

Advance Runaway Truck Ramp

W7-4B

Runaway Truck Ramp Exit (Right Diag. Arrow)

W7-4D

Sand-Plaque

W7-4E

Gravel-Plaque

W7-4F

Paved-Plaque

W7-6

Hill Blocks View

W8-1

Bump

W8-2

Dip

W8-3

Pavement Ends

W8-4

Soft Shoulder

W8-5

Slippery When Wet

W8-5A

Slippery When Wet Plaque

W8-7

Loose Gravel

W8-8

Rough Road

W8-9

Low Shoulder

W8-11

Uneven Lanes

W8-13

Bridge Ices Before Road

W-13B

Bridge May Be Slippery

W8-14

Grooved Pavement Ahead

W8-15

Rumble Strips Ahead

W8-15-1

Center Line Rumble Strips

W8-16

Open Grate Bridge

W8-17

Falling Rock

W8-18

Roadway Subject To Flooding

W8-19

Watch For Ice

W8-20

Watch For Mud

W8-20-1

Mud Slide Area

W8-21

Slippery Conditions

W8-22

Anti-Icing In Progress And When Flashing

W8-22-1

Anti-Icing In Progress And When Flashing

W9-1L

Left Lane Ends

W9-1R

Right Lane Ends

W9-2L

Lane Ends Merge Left

W9-2R

Lane Ends Merge Right

W9-3

Center Lane Closed

W9-3A

Center Lane Must Shift Left

W10-1

Railroad Warning

W10-1A

Exempt Railroad Warning (For W10-1)

W10-1B

Bicyclists Dismount

W10-2

Railroad Crossing At Crossroad

W10-3

Railroad Crossing On Side Road

W10-4

Rr Crossing On Stem Of T Intersection (Right)

W10-4A

Rr Crossing On Stem Of T Intersection (Left)

W10-5

Low Ground Clearance Hwy-Rr Crossing

W10-5-1

Low Ground Clearance Hwy-Rr Cross (Plaque)

W10-9

No Train Horn

W11-1

Bycicle Warning

W11-2

Pedestrian

W11-2A

Raised Pedestrian Crossing

W11-2B

Hiker Crossing

W11-3

Deer Crossing

W11-3A

Elk Crossing

W11-4

Cattle Crossing

W11-5

Farm Machinery

W11-6

Snowmobile Crossing

W11-6-1

Atv Crossing

W11-7

Equestrian Crossing

W11-8

Fire Station

W11-8-2

Emergency Vehicle Entrance

W11-9

Handicapped Area

W11-10

Truck Crossing

W11-10-1

Heavy Equipment Crossing

W11-11

Golf Cart Crossing

W11-12

Plant Entrance

W11-13

Park Entrance

W11-14

Orsedrawn Vehicle

W11-15

County Home

W11-15-1

Senior Citizens Center

W11-16

Hospital

W11-17

Church

W11-19A

Hidden Driveway

W11-20

Bridle Path

W11-21

Left Turns And Cross Traffic

W11-21-1

Left Turns

W11-21-2

Watch For Turns

W11-22A

Impaired Child

W11-25

Blind Pedestrian Crossing

W11-26

Duck Crossing

W11-27

Tank Crossing

W11-28

Cemetery Entrance

W12-1

Double Arrow

W12-2

Low Clearance

W12-2-3

On Shoulder

W12-2P

Low Clearance (Overhead)

W13-1

Advisory Speed

W13-2

Dvisory Exit Speed

W13-3

Advisory Ramp Speed

W14-2

No Outlet

W14-2-1

No Thru Street

W14-3

No Passing Zone (Pennant)

W14-5

No Winter Maintenance

W14-6

Congested Area Next(    ) Mile(S)

W14-7

Watch For Stopped Vehicles

W14-8

New Traffic Patterns

W14-9

Truck Weighing Ahead

W14-10

Fog Area

W14-11

Vehicles Are Closer Than They Appear

W14-12

Slow Moving Vehicles

W14-13

Low Flying Aircraft

W14-14

High Cross Winds

W14-15

Traffic Survey

W14-16

Balloon Launch Area

W14-22

Are Your Turn Signals On?

W15-1

Playground

W15-2

Watch Children

W16-1

Share The Road

W16-2

(    ) Feet (Black-On-Yellow)

W16-3A

(    ) Miles (Black-On-Yellow)

W16-7P

Diagonal Downward Pointing Arrow

W16-8

Single-Line Advance Street Name

W16-8A

Double-Line Advance Street Name

W16-9P

Ahead Plaque

W16-10

Photo Enforced Plaque

W16-10A

Red Light Photo Enforced

W16-12P

Traffic Circle Plaque

W17-1

Speed Hump

W20-1

Road Work

W20-1S

Rectangular Road Work

W20-2

Advance Detour

W20-3

Road Closed

W20-3A

Road Open

W20-4

One Lane Road

W20-5AL

Left Two Lanes Closed

W20-5AR

Right Two Lanes Closed

W20-5L

Left Lane Closed

W20-5R

Right Lane Closed

W20-5-3

Rectangular Left Lane Closed

W20-5-4

Rectangular Right Lane Closed

W20-7A

Flagger Symbol

W20-8

Arrow

W20-9

Temporary Roadway

W20-10A

Be Prepared To Stop Next (    ) Mi

W20-11

Sobriety Check Point Ahead

W20-12

Safety Check Point Ahead

W20-12

Safety Check Point Ahead

W20-13

Tunnel Temporarily Closed

W20-15

Expect Delays

W20-16

Road Survey Next (    ) Mi

W20-17

End Roadway Survey

W20-99

Tunnel Lane Closed

W21-2

Fresh Oil

W21-2-1

Travel At Your Own Risk

W21-4-1B

Ramp Work Ahead

W21-5

Shoulder Work

W21-5BL

Left Shoulder Closed

W21-5BR

Right Shoulder Closed

W21-5-1

Fresh Oil And Chips

W21-5-2

Oil And Chipping Ahead

W21-6

Survey Crew

W21-7

Utility Work Ahead

W21-8

Work Area Ahead

W21-8-1

Rectangular Work Area Ahead

W21-9A

No Guide Rail

W21-10

Stop And Slow (Paddle)

W21-11

Bridge Inspection Ahead

W21-12

Sand Blasting Ahead Close Windows

W21-14

Mowing Next (    ) Mi

W21-15

Counter Installation Ahead

W21-16

No Pavement Markings

W21-18

Litter Crew Ahead

W21-18A

Litter Crew Ahead (Square)

W21-19

Active Work Zone When Flashing

W21-20

End Active Work Zone

W21-1

Blasting Zone Ahead

W22-2

Turn Off 2-Way Radios And Cell Phones

W22-3

End Blasting Zone

W23-1

This Bridge To Be Closed For Maintenance

W23-2

Road To Be Oiled Next Week

W23-3

End Of Proposed Oiling

W24-1L

Single Lane Double Reverse Curve

W24-1R

Single Lane Double Reverse Curve

W24-1AL

Two Lane Double Reverse Curve

W24-1AR

Two Lane Double Reverse Curve

W24-1BL

Three Lane Double Reverse Curve

W24-1BR

Three Lane Double Reverse Curve

W25-1

Accident / Emergency Ahead

W25-2

Truck Inspection Ahead

W25-3

Bus Inspection Ahead

W25-9

Truck Inspection Ahead

W30-1-1

Distance (500 Ft) (Panel)

W30-1-2

Distance (1000 Ft) (Panel)

W30-1-3

Distance (1500 Ft) (Panel)

W30-1-4

Distance (1/2 Mile) (Panel)

W30-1-5

Distance (1 Mile) (Panel)

W30-1-6

Distance (Ahead) (Panel)

G20-1

Length Of Work

G20-1-2

Road Work To Begin Next Week

G20-2

End Road Work

G20-4

Pilot Car

G20-4-1

Turning Vehicles -- Wait For Pilot Car

G20-6

Detour Following Red Arrow

G20-6-1

Red Arrow

G20-15

Rossover (    ) Feet

G20-16

Maintain Safe Distance Between Vehicles

G20-17

Single Lane Next (    ) Miles

G30-1

Emergency Pull0Off (    )

G30-2

Emergency Pull-Off Entrance

G40-1

Temporary Arrow

G40-2

Striped (Panel) (For G40-1)

G60-1

Road Work Info Tune Radio To (    ) Am

G60-1A

Urgent Message When Flashing

G70-1

Use Both Lanes To Merge Point

G70-2

Merge Here Take Your Turn

M1-1

Interstate Route (Marker)

M1-2

Interstate Business Loop

M1-3

Interstate Business Spur

M1-4

U.S. Route (Marker)

M1-5

Pennsylvania Route (Marker)

M1-5A

Pennsylvania Turnpike (Marker)

M1-8

Bicyclepa Route (Marker)

M1-8A

Bicyclepa Route Marker Turn Assembly

M1-10

Eisenhower Interstate System (2 Pages)

M2-1

Junction (Marker)

M2-1-1

Interstate Junction (Marker)

M3-1

North (Marker)

M3-1-1

Interstate North (Marker)

M3-1-2

Interstate Business North (Marker)

M3-2

East (Marker)

M3-2-1

Interstate East (Marker)

M3-3

South (Marker)

M3-3-1

Interstate South (Marker)

M3-3-2

Interstate Business South (Marker)

M3-4

West (Marker)

M3-4-1

Interstate West (Marker)

M4-2

By - Pass (Marker)

M4-3

Business (Marker)

M4-4

Truck (Marker)

M4-5

To (Marker)

M4-5-1

Interstate To (Marker)

M4-6

End (Marker)

M4-8

Detour (Marker)

M4-8A

End Detour

M4-8-1

Car Detour (Marker)

M4-8-2

Truck Detour (Marker)

M4-9L

Detour Left

M4-9R

Detour Right

M4-9S

Detour Straight

M4-9SL

Left Advance Detour

M4-9SR

Right Advance Detour

M4-9AL

Left Advance 45˚ Detour

M4-9AR

Right Advance 45˚ Detour

M4-9BL

45˚ Left Turn Detour

M4-9BR

45˚ Right Turn Detour

M4-10L

Detour Arrow Left

M4-10R

Detour Arrow Right

M4-10S

Detour Arrow Straight

M4-11

Begin (For D11-1)

M4-12

End (For D11-1)

M4-13

To (For D11-1)

M5-1L

Advance 90˚ Left Turn (Marker)

M5-1-1L

Interstate Advance 90˚ Left Turn (Marker)

M5-1R

Advance 90˚ Right Turn (Marker)

M5-1-1R

Interstate Advance 90˚ Right Turn (Marker)

M5-2L

Advance 45˚ Left Turn (Marker)

M5-2-1L

Interstate Advance 45˚ Left Turn (Marker)

M5-2R

Advance 45˚ Right Turn (Marker)

M5-2-1R

Interstate Advance 45˚ Right Turn (Marker)

M6-1

90˚  Turn (Marker)

M6-1-1

Interstate 90˚ Turn (Marker)

M6-2L

45˚ Left Turn (Marker)

M6-2-1L

Interstate 45˚ Left Turn (Marker)

M6-2R

45˚ Right Turn (Marker)

M6-2-1R

Interstate 45˚ Right Turn (Marker)

M6-3

Straight Through (Marker)

M6-3-1

Interstate Straight Through (Marker)

M6-4

90˚ Right And Left Turn (Marker)

M7-1

Horizontal Arrow (For D11-1)

M7-2

Vertical Arrow (For D11-1)

M7-3

Double Headed Diagonal Arrow (For D11-1)

M7-4

Diagonal Arrow (For D11-1)

M7-5

Double Headed Horizontal Arrow (For D11-1)

M7-6

Horizontal And Vertical Arrow (For D11-1)

M7-7

Vertical And Diagonal Arrow (For D11-1)

D1-1

Single-Line Destination

D1-1A

Single-Line Destination Mileage

D1-2

Double0Line Destination

D1-2A

Double-Line Destination Mileage

D1-3

Triple-Line Destination

D1-3A

Triple-Line Destination Mileage

D2-1

Single-Line Distance

D2-2

Double-Line Distance

D2-3

Triple-Line Distance

D3-1

Street Name

D3-2

Single-Line Advance Street Name

D3-3

Double-Line Advance Street Name

D3-4

Single-Line Overhead Street Name

D3-5

Double-Line Overhead Street Name

D4-1

Parking Area

D4-2

Park And Ride

D4-10

Department Ride Sharing Parking Lot

D5-1

Rest Are (    ) Mile

D5-2

Rest Area Entrance

D5-5A

Roadside Table

D5-5-1

(    ) Feet (White-On-Blue)

D5-6-1

Visitor Info

D5-6-2

Vending Machines

D5-6-3

Free Reservation Service

D6-2

Advance Scenic Overlook

D6-3

Scenic Overlook Entrance

D7-4

Attraction

D8-1

Advance Weigh Station

D8-2

Weigh Station Next Right

D8-3

Weigh Station

D9-1A

Telephone With Arrow

D9-1B

Telephone (    ) Mile

D9-1-2

Emergency Telephone

D9-2

Hospital

D9-2-2

Services Arrow

D9-3

Camping

D9-7

Gas

D9-8

Food

D9-9

Lodging

D9-10

Isitor Information

D9-11

Diesel

D9-14

State Police

D10-1

Single-Digit Distance Marker

D10-1A

Single-Digit Intermediate Distance Marker

D10-2

Double-Digit Distance Marker

D10-2A

Double-Digit Intermediate Distance Marker

D10-3

Triple-Digit Distance Marker

D10-3A

Triple-Digit Intermediate Distance Marker

D10-4

Enhanced Distance Marker

D11-1

Bike Route

D12-2

Car Pool Information

D14-1

Emergency Detour - Follow (Color) Arrow

D15-1

Emergency Detour (Color) Trailblazer

D16-1

All Traffic Must Exit

S1-1

School

S3-1

School Bus Stop Ahead

S3-1-1

School Bus Turn Around

S3-3

School Bus Crossing

S4-3

School (Panel)

S4-4

When Flashing

S4-5

Reduced Speed (School) Zone Ahead

S5-2

End School Zone

OM1-3

Object Marker (Yellow Reflectorized Blank)

OM4-3

End Of Roadway Marker (Red Reflectorized Blank)

OM-3L

Left Clearance Marker (Black & Yellow)

OM-3R

Right Clearance Marker (Black & Yellow)

-
